Centre Pin Assembly

From £170.00

Complete with Nuts?

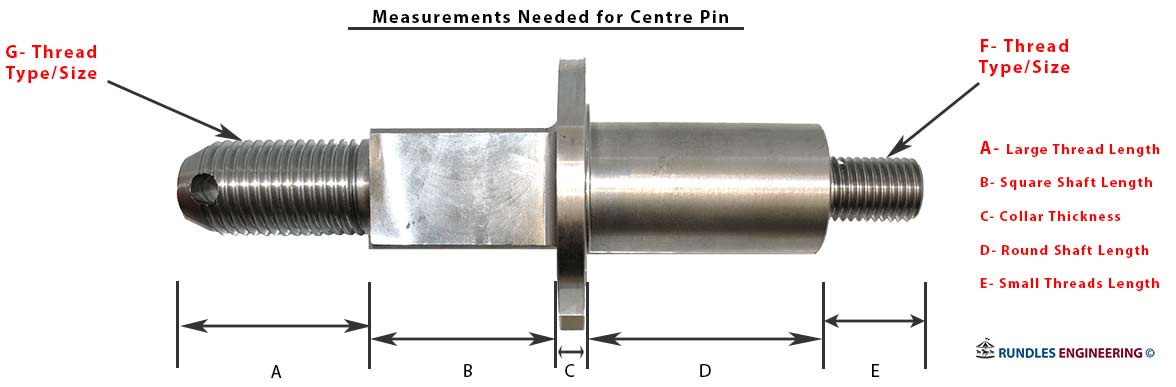

A – Length of Large threaded bar

B – Square Shaft Length

C – Collar Thickness

D – Round Shaft Length

E- Mall Thread Length

F – Small Thread Size and Type

Please give us the type and size of thread – i.e. M8 or 1/2″ BSW, UNF etc

G – Large Thread type and size

Please give us the type and size of thread – i.e. M8 or 1/2″ BSW, UNF etc

Upload A Drawing

(max file size 32 MB)

Description

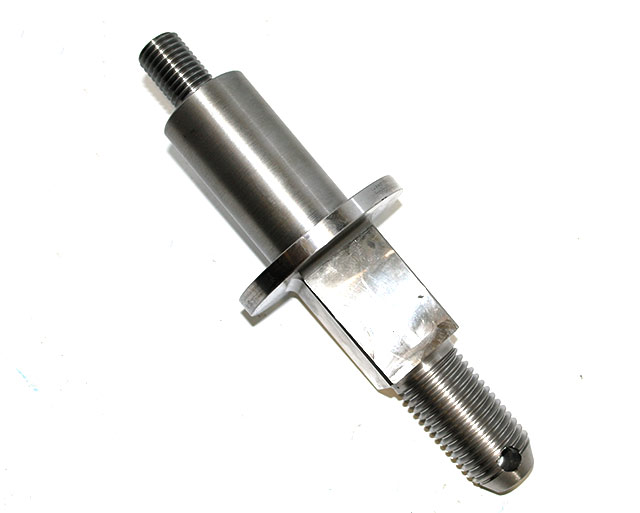

Waltzer car centre pin assembly – This item can be made to specification for different models and sizes of Waltzer Car.

Additional information

Weight 4.3 kg
Complete with Nuts

,
