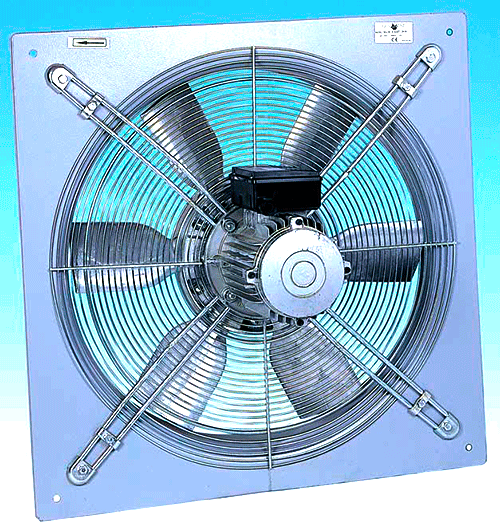

Flameproof fans for use in hazardous areas
where flammable gas or dust is present.

Buxton certified to BS 4683 Pt. 2 Group 2B Cases
Includes Motor side guard.

Clear

Description

IMPELLERS

All units are fitted with Breezax anti static blades as standard. Aluminium blades can be fitted if required.

PLATES
Stainless steel or mild steel with nonsparking track. (Refer to our Sales Office for Motor Blade & Guard assemblies without plate).
MOTORS
Comply with ATEX Directive 94/9/EC and EN50014, EN50018 & EN50281-1-1. Enclosure IP55 or IP56, insulation Class F. Fitted with sealed for life ball bearings.
GAS GROUPS
The standard range covers IIA and IIB gases. Fans for IIC (Hydrogen) are also available.
MOUNTING & AIRFLOW
All units are suitable for internal or external operation at any installed angle. Airflow direction is Plan A as standard; Plan B can be supplied if required.
ANCILLARIES
Wire safety guards or louvre shutters (gravity type) available to match all sizes.
OPERATING TEMPERATURES
From -20ºC to +50ºC as standard; fans for operation beyond these limits are also available

Note: Lead time can be up to 7 days

flame proof fans from Rundles

flame proof fans from Rundles

flame proof fans from Rundles

Additional information

Weight 24.1 kg
Blade side guard

,
