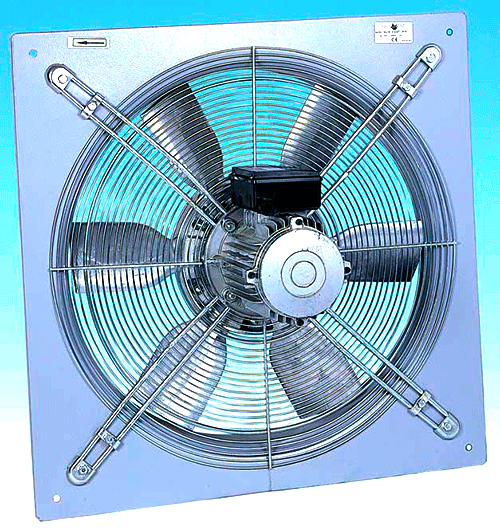

Flameproof fans for use in hazardous areas
where flammable gas or dust is present.
Certified to Eronorm BS5501.
Includes Motor side guard.
All units are fitted with Breezax anti static blades as standard. Aluminium blades can be fitted if required.
Stainless steel or mild steel with nonsparking track. (Refer to our Sales Office for Motor Blade & Guard assemblies without plate).
Comply with ATEX Directive 94/9/EC and EN50014, EN50018 & EN50281-1-1. Enclosure IP55 or IP56, insulation Class F. Fitted with sealed for life ball bearings.
The standard range covers IIA and IIB gases. Fans for IIC (Hydrogen) are also available.
All units are suitable for internal or external operation at any installed angle. Airflow direction is Plan A as standard; Plan B can be supplied if required.
Wire safety guards or louvre shutters (gravity type) available to match all sizes.
From -20ºC to +50ºC as standard; fans for operation beyond these limits are also available
Note: Lead time can be up to 7 days
