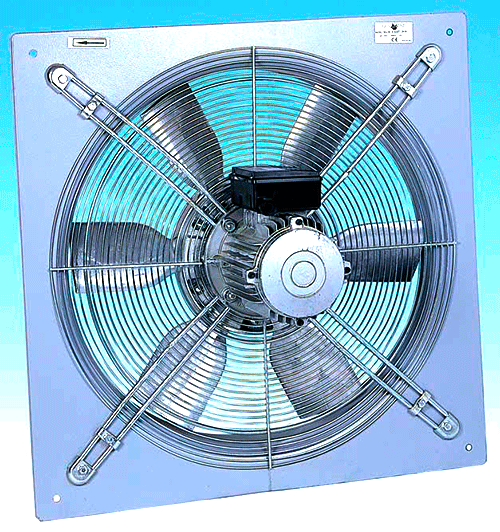

Plate mounted fans for industrial use
Complete with motor side guard
Weather proof (safe area type)

Clear

Description

SIZE RANGE 225mm to 760mm impeller diameter.
PERFORMANCE Ranging from 0.05 to 5.4m³/s – full details are available on our fan selection software.
IMPELLERS Fan sizes 150 & 190mm are fitted with aluminium blades. Sizes 230 to 760mm are fitted with GRP blades.
PLATES Mild steel with polyester powder paint finish. Epoxy paint finish can be supplied for special applications. (Refer to our Sales Office for Motor Blade & Guard assemblies without plate).
MOTORS Totally enclosed safe area type, enclosure IP54 or IP55, insulation Class F. Fitted with sealed for life ball bearings.
MOUNTING & AIRFLOW All units are suitable for internal or external operation at any installed angle. Airflow direction is Plan A as standard; Plan B can be supplied if required
ANCILLARIES Wire safety guards or louvre shutters (gravity type) available to match all sizes.
OPERATING TEMPERATURES From -20ºC to +50ºC as standard; fans for operation beyond these limits are also available.
SPEED CONTROL All single phase four pole units can be supplied with a speed controller. Consult our Sales Office for advice on control of three phase fans.

Rundles Ventilating fans
Rundles Ventilating fans
Rundles Ventilating fans

Additional information

Weight 14.1 kg
Blade side guard

,
